| Hãng sản xuất | Asrock |
| Chủng loại | H81M-DGS R2.0 |
| CPU hỗ trợ | • – Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150) – Supports Intel® Turbo Boost 2.0 Technology |
| Chipset | Intel® H81 |
| Bộ nhớ trong | – Dual Channel DDR3/DD3L Memory Technology – 2 x DDR3/DD3L DIMM Slots – Supports DDR3/DD3L 1600/1333/1066 non-ECC, un-buffered memory – Max. capacity of system memory: 16GB* – Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 |
| VGA onboard | – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1 – Max. shared memory 1792MB – Two graphics output options: support DVI-D and D-Sub ports by independent display controllers – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports HDCP with DVI-D Port – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port |
| Âm thanh | 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| Khe mở rộng | – 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode) – 1 x PCI Express 2.0 x1 Slot |
| Chuẩn lưu trữ | – 2 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug |
| Cổng giao tiếp trước và sau | – 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port – 1 x DVI-D Port – 4 x USB 2.0 Ports – 2 x USB 3.0 Ports – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jack: Line in / Front Speaker / Microphone |
| Công nghệ tích hợp | – ASRock APP Shop – ASRock A-Tuning – ASRock Instant Flash – ASRock APP Charger – ASRock XFast USB – ASRock XFast LAN – ASRock XFast RAM – ASRock Crashless BIOS – ASRock OMG (Online Management Guard) – ASRock Internet Flash – ASRock System Browser – ASRock UEFI Tech Service – ASRock Dehumidifier – ASRock Easy Driver Installer – ASRock Interactive UEFI – ASRock Fast Boot – ASRock Restart to UEFI |
| Kích thước | Micro ATX Form Factor |
| Phụ kiện đi kèm | Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main |

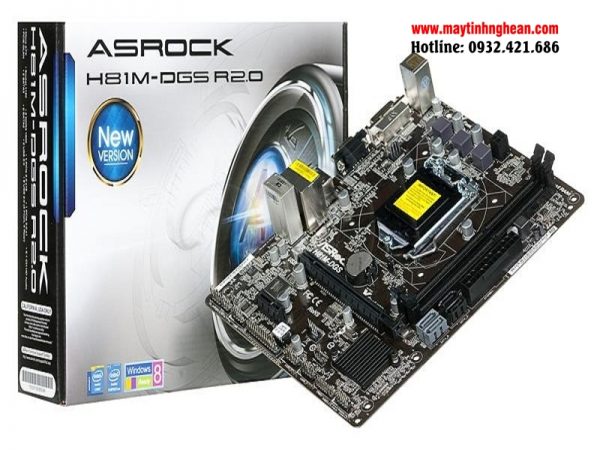

Main Asrock H81M
